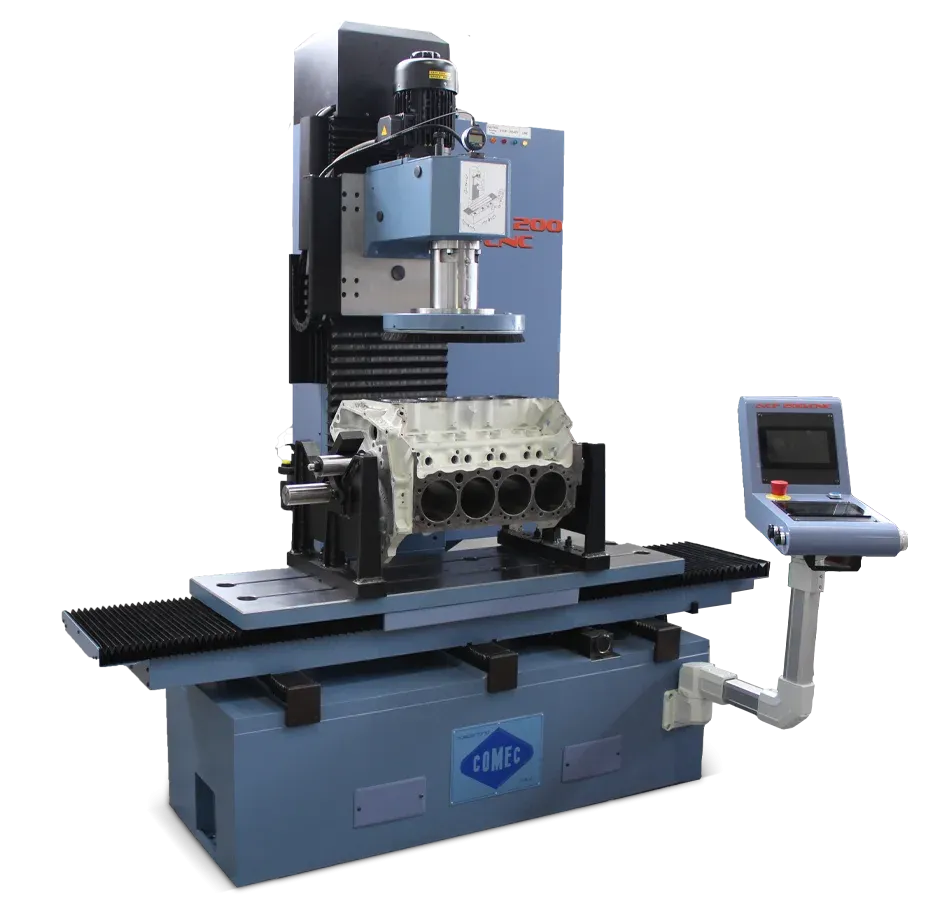

The ACF200.CNC boring machine combines the two main operations of reconditioning the monoblocks of cars and trucks, such as boring and smoothing, in a single machine and now completely automatically thanks to CNC control.
The finest finishing and precision qualities that characterize it are the result of a combination of a proven mechanical design and the introduction of highly innovative technology solutions that make it smart even faster and more practical to use.
- Computer Numerical Control using LINUX Operating System and ARMv8 CPU Processor
- Precision Ball screw drives on 3 Axis
- Movements by linear railways on 3 Axis
- Brushless motors on 3 axis controlled by CNC
- Swing arm control panel with double touch screens
- Electronic Handwheel for manual displacement on 3 Axis (Fast-Medium-Fine speeds)
- Full automatic and programmable working modes for boring and milling operations
- WI-FI and LAN connections for support and service
- PV0160 pair of parallel supports
- PV0021 large clamps (2 pcs.)
- PV0022 small clamps (4 pcs.)
- Wrench set
- Instruction manual
ACCESSORIES AND SPARE PARTS CNC CYLINDER BORING - RESURFACING MACHINES
PV1516 60° - 90° V-block blueprinting mounting fixture
PV0025 Pair of fast clamping column
PV0160 Pair of parallel supports
UT1390
ALP insert tool holder for UT1392
UT1392
ALP insert for aluminum with prechambers
UT1320
3/8” CBN/PCD insert tool holder
B03560
Ø 35÷60 mm L = 330 mm boring kit with dial gauge adjustment
B06085
Ø 60÷85 mm L = 320 mm boring kit with dial gauge adjustment
C03560
Ø 35÷60 mm L = 330 mm boring kit with pre-setting system
Ø 60÷85 mm L = 320 mm boring kit with pre-setting system
Ø 85÷170 mm L= 360 mm boring kit with pre-setting system
B85170
Ø 85÷170 mm L = 360 mm boring kit dial gauge adjustment
PF0350
1/2” CBN or PCD milling plate dia. 350 mm (available only for ACF)
UT1330
1/2”CBN/PCD insert tool holder
UT1345
3/8” CBN Insert for cast iron
UT1346
3/8” PCD Insert for aluminium
PVB015
V-block adjustable universal fixture
APC040
CAT40 taper spindle for drilling
ACF500
Tool sharpening assembly with support with diamond wheel ACF550
| Boring range | 30÷170 mm |
| Max head vertical travel | 700 mm |
| Min-Max distance from head to table | 370÷1020 mm |
| Distance between spindle C/L and column | 290 mm |
| Table surface | 1340x370 mm |
| Max table longitudinal travel | 1200 mm |
| Max table transverse travel | 200 mm |
| Adjustable spindle rotation speed | 75÷600 rpm |
| Adjustable boring bar feed | 0÷3000 mm/min. |
| Adjustable table feed | 0÷3000 mm/min. |
| Spindle motor power | 1.5 kW |
| Rapid feed motor power | 1.27 N/m |
| Table feed motor power | 1.27 N/m |
| Travers feed motor power | 1.27 N/m |
| Dimensions (LxWxH) | 2045x1245x2175 mm |
| Weight | 1540 Kg |
