AZ SP1300

Conventional Surface grinding and milling machine

Ürün Görseli

Surface grinders are the ideal choice for all machine shops or high performance shops. Fixturing that will set up all work pieces easy and function rapidly. Infinitely variable table traverse producing the exact surface finish desired for the wide range of gasket materials used. A power column to help the operator finish the jobs fast. Rugged cast iron base with precision ground and matched ways. Flat and "V" way construction assures accurate parallelism and side-to-side tracking. Cast iron "box" type columns with dove tail ways and precision spindle bearings make the SP Series durable and accurate machines.

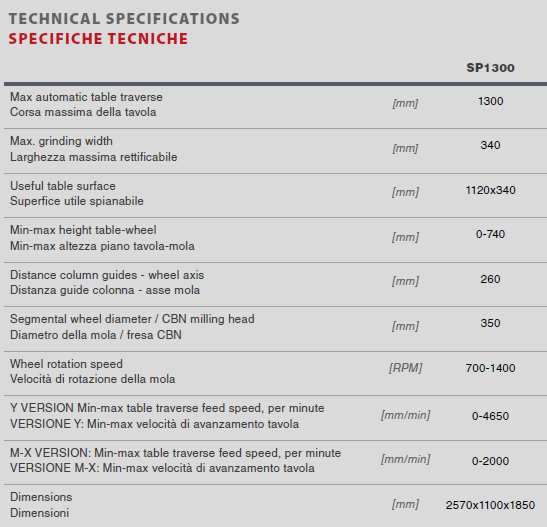

 SP1300
Head and table movement by ball screw systemM / X
Table hydraulic movement and head movement with ball screw systemY
PLC control systemX
Automatic down feedX
Variable speed of grinding wheelX
Grinding wheel with 10 grinding segments350 mm
Grindwheel  dresser-
Grindwheel hub pullerOK
Toolholder with brazed toolOK
Pair of parallel supports135x420 mm
Edge clamp (4 pieces) / Toe clamp (4 pieces)OK
Coolant systemOK
Balancing arbor for grinding headAZ608
Service tools/ Operating manualOK


M-SERIESMechanical version
Y-SERIESHydraulic machine
X-SERIESPLC machine
