- Cost-iron base
- Semi Automatic Grinding Mode/Reference Memory mode
- Automatic Shaft/Spindle Grinding Process (Automatic Feeding)
- Ethernet and Remote connection system available Industry 4.0
- Servo Control Grinding Wheel(Y-Axis) and Table Movement(X-Axis)
- Wheelhead forward,backward movemetns(Speed Adj.)
- Ball Screw system for (X-Y axis)
- Automatic lubrication system (All slides and ball screws)
- Cooler system for main wheel spindle(Optional)
- Speed Adjustable Electronic Handwheel for (X-Y axis)
- Electronic hand-wheel for precision feeds movement(0.005)
- Headstock and tailstock displacement on air cushion
- Electronic speed adjustable crank rotation motor
- Fast speed powered table traverse (X axis)
- Incremental electronic measuring device (X-Y axis)
- Movable Work lighting lamp
- Cooling unit with fabric filter System
- Magnetic Water Separator (Optional tool)
- Moveable centering system (Optional tool)
- Wheel head movement secure system
- (LCD)Touch Screen and NC-Software system
- Electric panel inside lighting lamp
- 220V Electric power plug on control panel for foreign uses

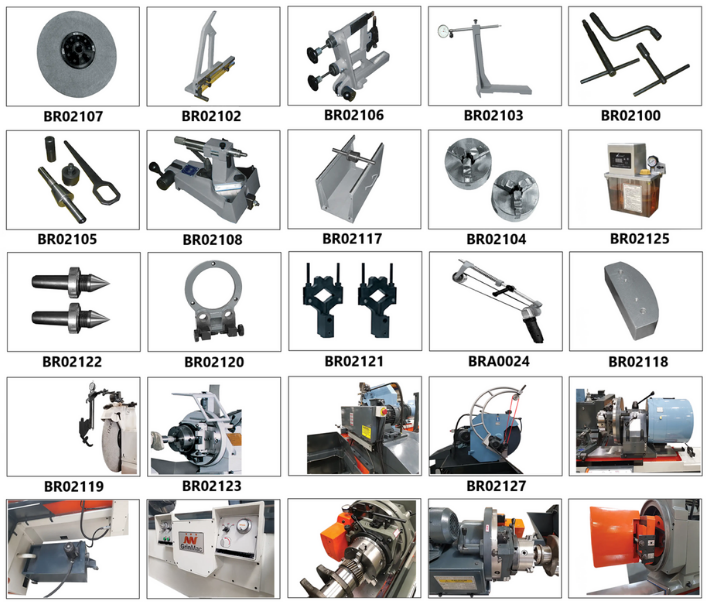

| Seri No | Ekstra / Standart Ekipmanlar | KS-4000 | |
| Standart | Extra | ||
| BR02100 | Service Tool box (Kit) | 1 | |
| BR02101 | Stroke or Center Position Checking Apparatus | 1 | |
| BR02102 | Device for taking the crank throw | 1 | |
| BR02103 | Centering rod mounted onto the check square | 1 | |
| BR02104 | Self Centering Chucks | 2 | |
| BR02105 | Wheel flange disassembly kit | 1 | |
| BR02106 | Narrow Steady Rest with built-in centering fixture | 1 | |
| BR02107 | Pair of flanges for grinding wheel | 1 | |
| BR02108 | Grinding wheel face and radius dresser(cutter diamond exluded) | 1 | |
| BR02109 | Cooling system tank | 1 | |
| BR02110 | Speed adj.Electronic handwheel(X-Y axis) | 1 | |
| BR02111 | Pneumatic system | 1 | |
| BR02112 | Fixing Locks | 2 | |
| BR02113 | Precision incremental in-feed(elc.handwheel) | 1 | |
| BR02114 | Electronic Powered Fast Table Traverse | 1 | |
| BR02115 | Digital Meausuring Device(X-Y axis) | 1 | |
| BRA0024 | Crankshaft superfinishing through device | Extra | |
| BRTT0023 | Grinding wheel | 1 | |
| BR02116 | Work lighting lamp | 1 | |
| BR02117 | Grinding wheel balancing arbor | 1 | |
| BR02118 | Counter Weight | Extra | |
| BR02119 | Continuous measurement attachment | Extra | |
| BR02120 | Cathtplate | Extra | |
| BR02121 | Drivers with locking pins | Extra | |
| BR02122 | Conic Centers | Extra | |
| BR02123 | Safety flop and switch | Extra | |
| BR02124 | Gress lubrication pump | 1 | |
| BR02125 | Automatic lubrication system | 1 | |
| BR02126 | Magnetic cooling water seperator | ||
| BR02127 | (Fixed)Crankshaft superfinishing through device | Extra | |

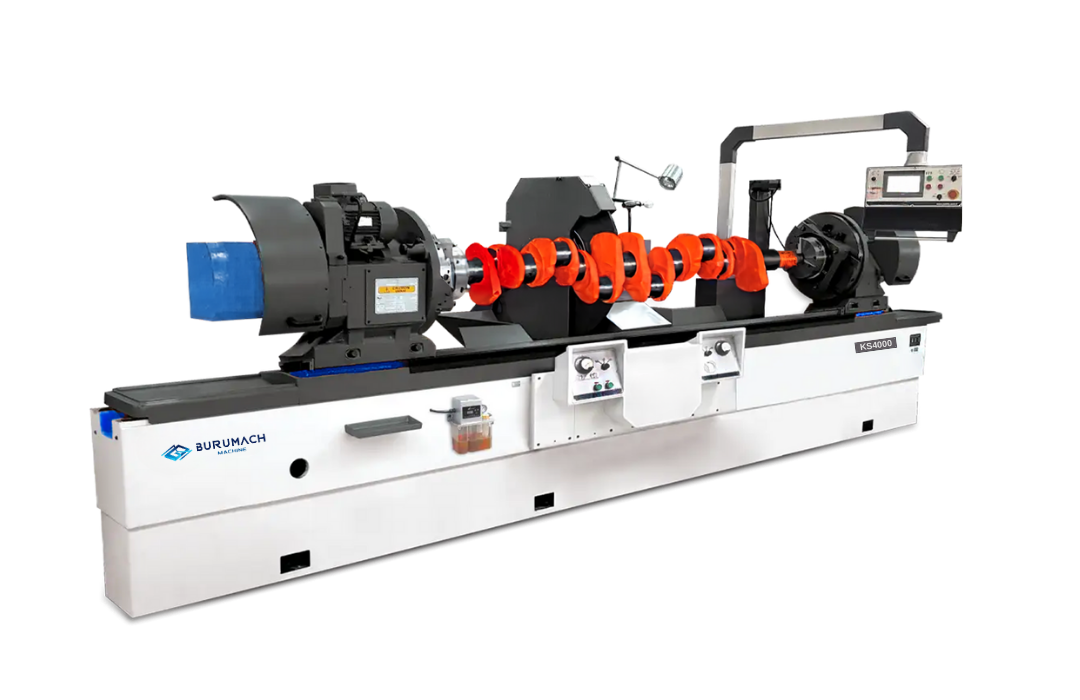

| Technical Specifications | KS-4000 | |
| Height of center over table | mm | 450 |
| Max.Distance between centers(2 executions) | mm | 3900 |
| Max.Swing over Table | mm | 700 |
| Max.Head offset | mm | 170 |
| Max. Diameter ground with full-size wheel | mm | 550 |
| Max. Mass admitted between centers | kg | 1200 |
| Max.Weight admitted (with steady rests) | kg | 3200 |
| Self-centering chuck diameter | mm | 250 |
| Table Micrometer feed of Elc.Handwheel | mm | 0.005 |
| Table Automatic quik movement | mm/min | 10000 |
| Workpiece rotation speed (stepless) | r.p.m | 0 - 100 |
| Grinding wheel diameter | mm | 915 |
| Max. Grinding wheel thickness | mm | 60 |
| Min. Grinding wheel thickness | mm | 16 |
| Air pressure for heads displacement | bar | 8 |
| Wheelhead fast traverse speed | mm/min | 200 |
| Wheelhead Micrometer feed of Elc.Handwheel (min) | mm | 0.005 |
| Grinding wheel motor power | kw | 7.5 |
| Workhead motor power | kw | 2 |
| Wheel head (forward-backward) movements motor power | kw | 1.5 (AC Servo) |
| Table control motor power | kw | 4 (AC Servo) |
| Cooling unit motor power | kw | 0.37 |
| Work length of machine | mm | 9000 |
| Length of machine | mm | 6500 |
| Width of machine | mm | 2600 |
| Height of machine | mm | 1660 |
| Weight of machine | kg | 7000 |
